ANNKE 4K Smart Dual Light Varifocal Bullet Network Camera 4X ZOOM IP67 Motion detection Human Vehicle Detection 8MP Smart Home

IP Camera

Camera

Image Sensor

1/2.4" Progressive Scan CMOS

Max resolution

3840*2160(8MP)

Main Stream

50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Substream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps - 16 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC

Built-in Microphone

Record with audio, environment noise filtering

Built-in Speaker

Max. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB.

Lens

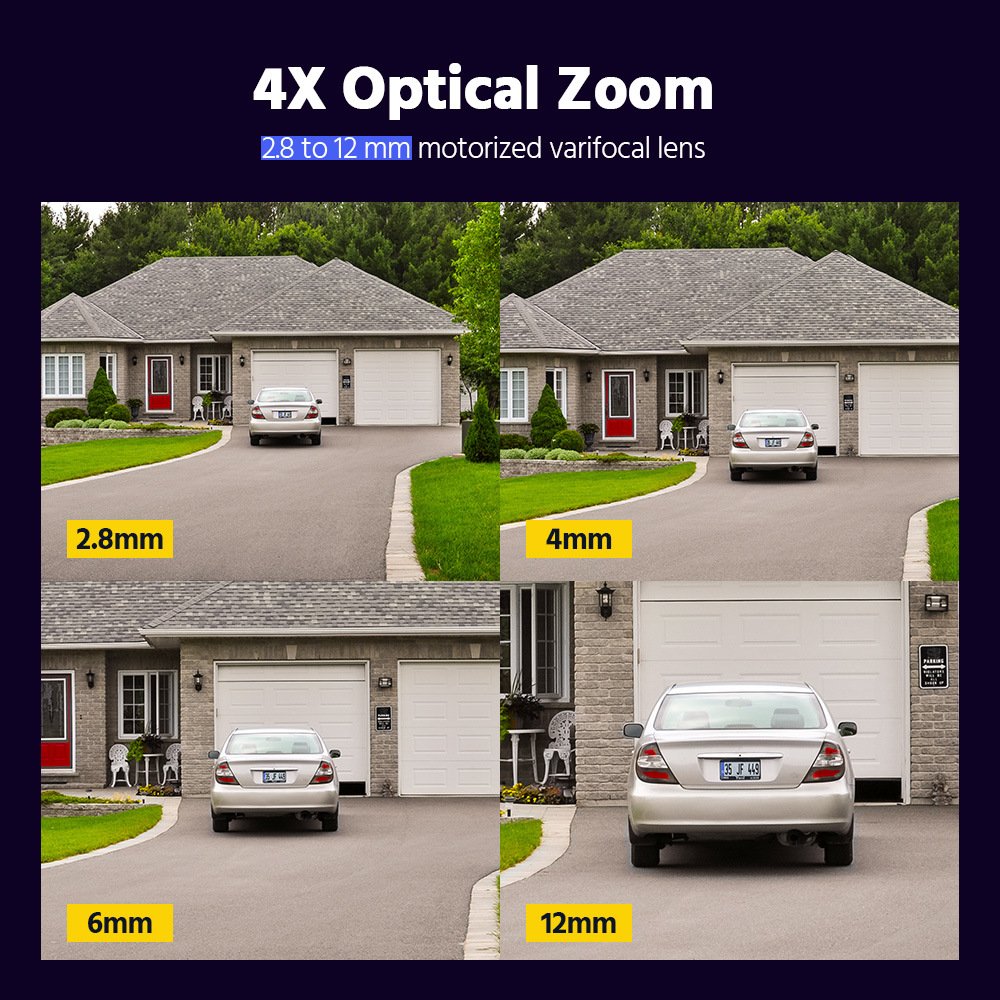

2.8 to 12 mm motorized varifocal

DORI

D: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of View

Horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°

Supplement Light Type

Smart Dual-Light, IR, White Light

Supplement Light Range

Up to 50 m

Motion detection 2.0

Supoort, include Human & Vehicle detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range

120 dB WDR

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

API

Open Network Video Interface Version (Profile S, Profile T, Profile G),ISAPI

Region of Interest (ROI)

1 fixed region for main stream

Privacy Mask

4 programmable polygon privacy masks

General Function

Rotate mode, mirror, password protection, remote access

Web Browser

Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

APP

PC: Windows, Mac OS; Smartphone: iOS, Android

Ethernet

1 RJ45 10 M/100 M self-adaptive Ethernet port

General

Housing

Metal & Plastic

Color

White

Storage

Built-in microSD/SDHC/SDXC Slot, up to 512 GB

Hardware Reset

Yes

Operating Power

12 VDC ± 25%, 0.9 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W

Operating Conditions

-22 °F – 140 °F/-30 °C – 60 °C.Humidity 95% or less (non-condensing)

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67

Dimension (L X W X H)

105 mm × 285.8 mm (Ø4.13" × 11.25")

Weight

Approx. 805 g (1.8 lb.)
