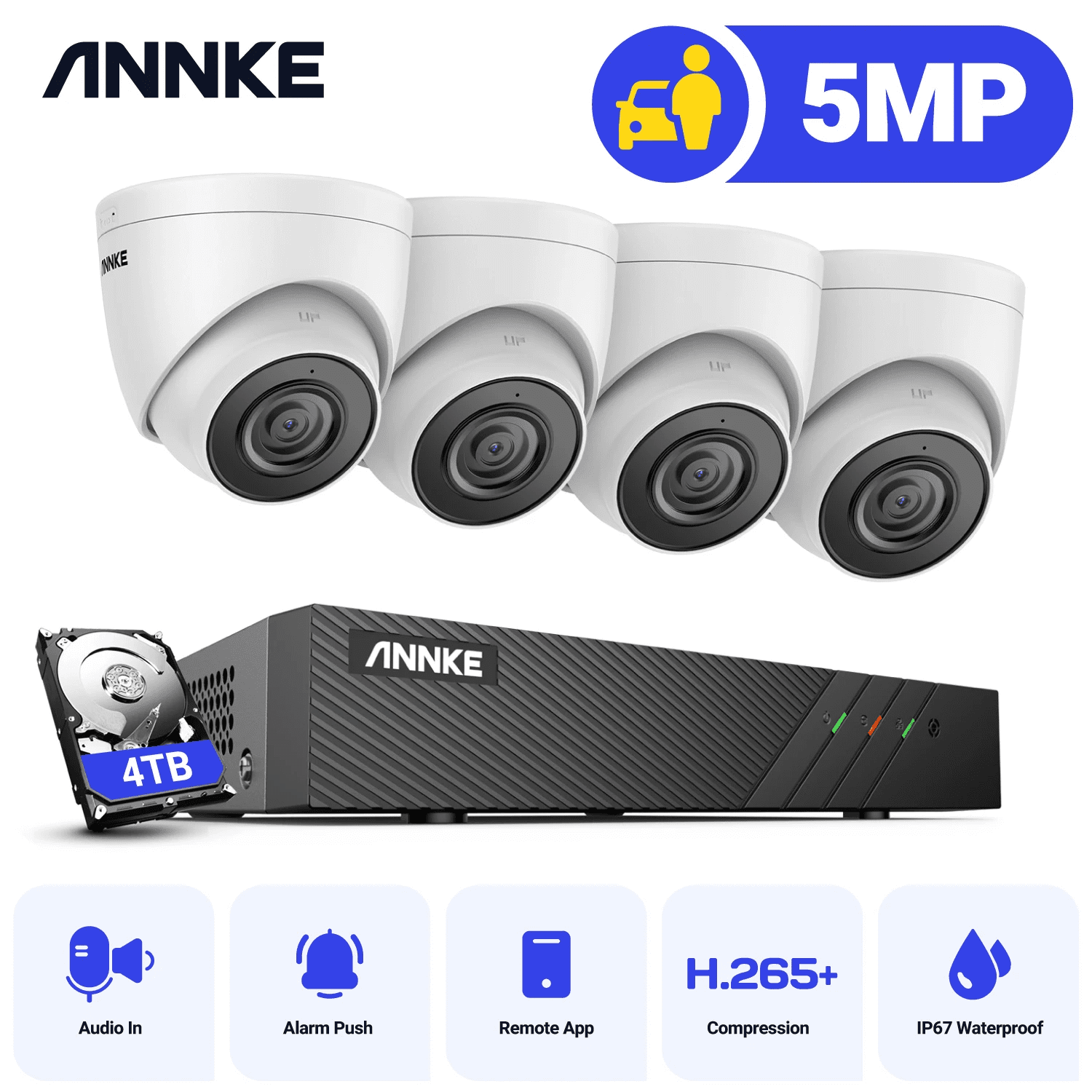

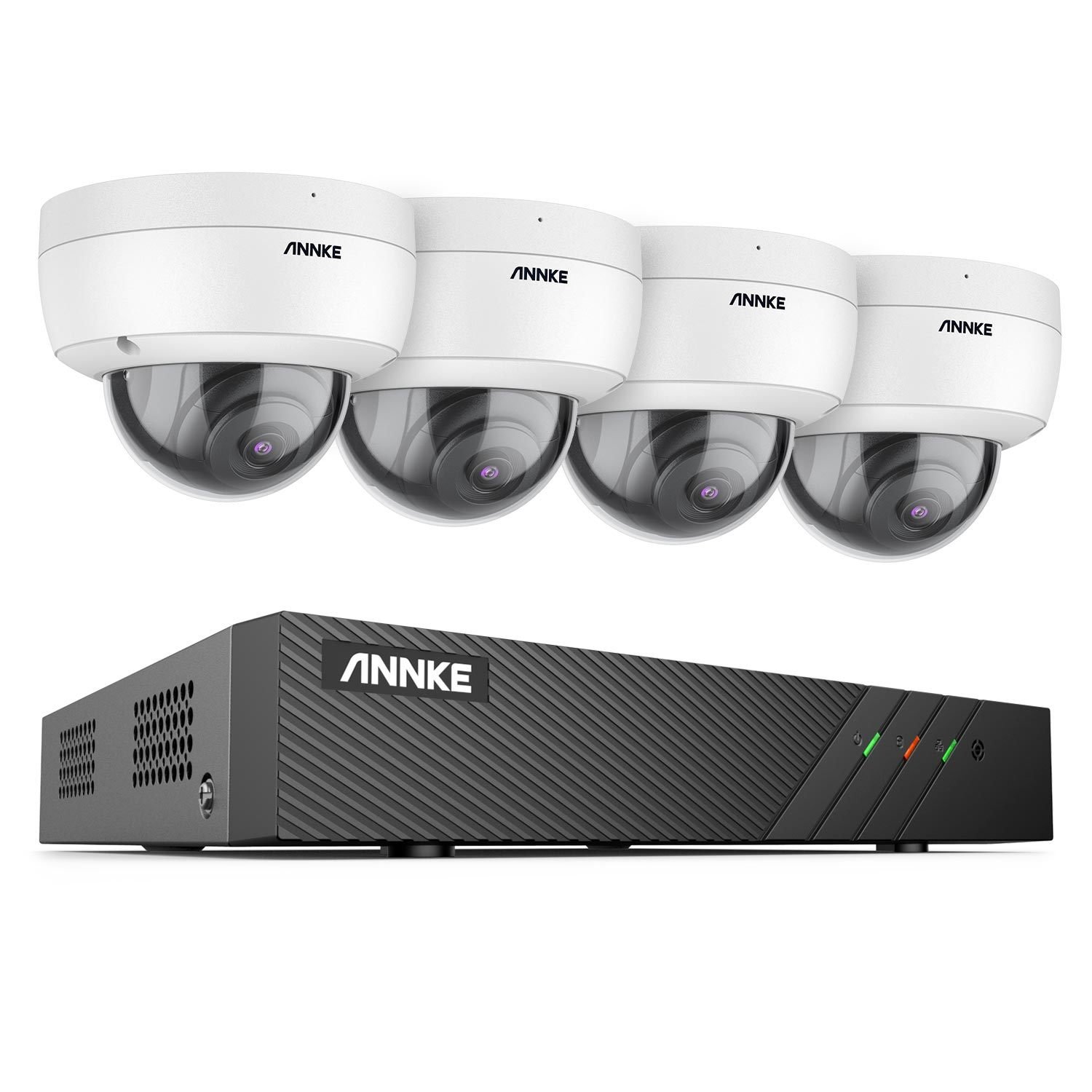

ANNKE 5MP H.265+ Super HD PoE Network Video Security System 4pcs Waterproof Outdoor POE IP Cameras White Dome PoE Camera Kit

NVR

Video & Audio

Video Compression

H.265+/H.265/ H.264+/H.264

IP Video Input

8CH POE

Video Output

HDMI & VGA Up to 1080P

Incoming bandwidth

60M

Max Recording Resolution

Up to 6MP

Max Playback Resolution

Up to 6MP

Max Playback Channel

8CH

Max Playback Capacity

4-ch@1080P, 1-ch@6MP@25fps

Onvif Protocols

Support

Hard Drive

HDD

1 SATA interface

HDD Capacity

Up to 6TB capacity

External Interface

Network interface

RJ45x1(10/100M)

POE

8 Ports(IEEE802.3af/at)

USB

2x USB 2.0

General

Operating Power

DC48V

Power Consumption

≤10W(without HDD and POE)

POE: Max 25.5W for single port

Working Temperature

14 °F ~ 131 °F /-10 °C ~+55 °C

Dimensions(W x H x D)

10.4" × 8.9" × 1.9" / 265 × 225 × 48mm

Weight (without hard disk)

2.2lb / 1KG

IP Camera

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max resolution

3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display

Main Stream

50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz:20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)

Substream

50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps - 6 Mbps

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Input

Built-in Microphone, record with audio

Lens

2.8 mm

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Angle of View

Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°

Number of Infrared LEDs

2 pcs

Night Vision Distance

Up to 100 ft/30 m

Motion detection 2.0

Supoort, include Human & Vehicle detection

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range

120 dB WDR

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP

API

Open Network Video Interface

Region of Interest (ROI)

1 fixed region for main stream

Privacy Mask

4 programmable polygon privacy masks

General Function

Mirror,rotate,password protection,video tampering alarm, remote access

Ethernet

1 RJ45 10 M/100 M self-adaptive Ethernet port

General

Housing

Metal & Plastic

Color

White & Black

Storage

Built-in microSD/SDHC/SDXC Slot, up to 256 GB

Hardware Reset

Yes

Operating Power

DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimension (L X W X H)

7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm

Weight

0.6 lb./270 g
