Camera Key features
★ 4K Panoramic 180°Fixed Bullet Network Camera
★ One image that presents all the scenes covered by the camera
★ Efficient H.265+ compression technology
★ Clear imaging against strong back light due to 120 dB WDR technology
★ Focus on human and vehicle classification based on deep learning
★ Audio alarm to warn intruders off
★ White light up to 20 m, IR light up to 30m
★ Water and dust resistant (IP66)
★ Support 256 GB TF storage space
★ Two way audio
NVR Key features
· 8MP high definition Real-time live viewing
· Live view, recording&playback up to 8 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone, iPad, Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· Annke Vision for easy remote view

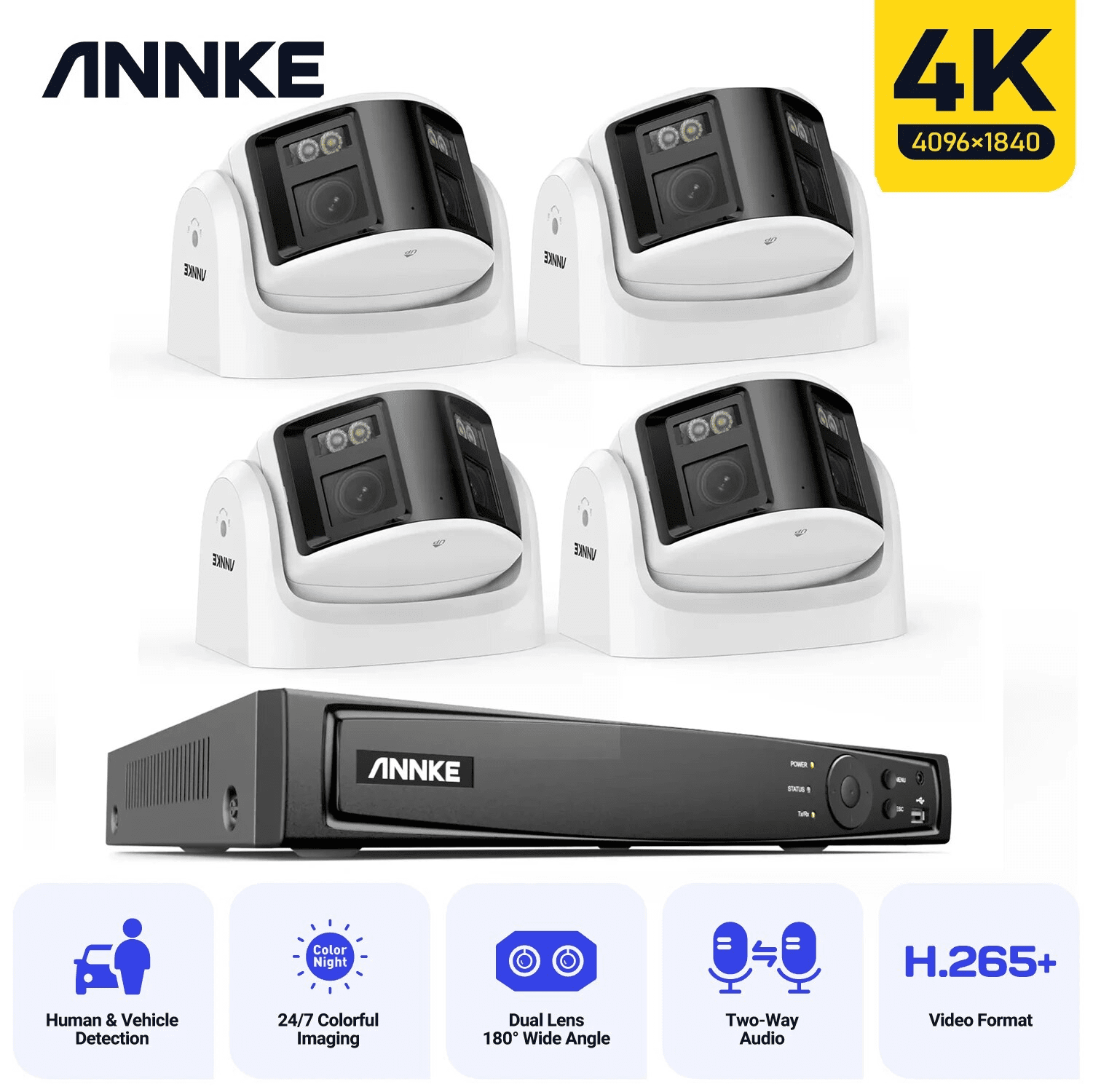

Packaging Contents
4 X IP Camera
4 X Metal Bracket
4 X Surveillance Sign
4 X 1m Network cable
4 X Waterproof connector
4 X Mounting Screws Bag
1 X NVR
1 X USB Mouse
1 X Power Adapter
1 X 1M network cable
1 X 1.8M HDMI cable
1 X User's Manual
NVR | ||
Video & Audio | Video Compression | H.265+/H.265/H.264+/H.264/MPEG4 |
IP Video Input | 32 Channel (Include 16 Channel PoE) | |
Video Output | HDMI up to 4K, VGA up to 1080p, CVBS | |
Audio Input/Output | 1/1 RCA | |
Incoming/outgoing Bandwidth | 256 Mbps | |
Max Recording Resolution | Up to 12MP | |
Max Playback Resolution | Up to 12MP | |
Max Playback Channel | 16 Channel | |
Max Playback Capacity | 2CH @12MP (20 fps)/4CH @8MP (25 fps)8-ch @ 4MP (30 fps)/16-ch @ 1080p (30 fps) | |
ONVIF Protocol | Support | |
Hard Drive | HDD | 4 SATA Interface |
HDD Capacity | Up to 12 TB Capacity for Each HDD(48 TB total) | |
| Network Interface | RJ45 X1 (10/100/1000 M) |
PoE | 16 Ports (IEEE802.3at/af) | |
Alarm Input/Output | 16/4 | |
Serial Interface | 1 RS-485 (Half-Duplex), 1 RS-232 | |
USB | Front Panel: 2X USB 2.0; Rear Panel: 1X USB 3.0 | |
General | Operating Power | 100-240V |
Power Consumption | <20 W (Without HDD and PoE) | |
Working Temperature | 14 °F — 131 °F/-10 °C — +55 °C | |
Dimensions (W X H X D) | 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm) | |
Weight (Without Hard Disk) | ≤11 lbs. (5 kg) |
IP Camera | ||
Camera | Image sensor | 2×1/2.5" Progressive Scan CMOS |
Max resolution | 4K(4096 × 1840), 20: 9 picture ratio | |
Main Stream | 50 Hz: 20 fps (4096 × 1840) | |
Sub Stream | 50 Hz: 20 fps(1200 × 536, 960 × 432) | |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264 | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
Built-in Microphone | Built-in Microphone, record with audio | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 | |
Built-in Speaker | Yes, max. sound pressure: 10 cm: 95 dB | |
Lens | Dual lens: 2.8 mm | |
Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
Angle of View | Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10° | |
Supplement Light Type | White light, IR | |
Supplement Light Range | White light up to 20 m, IR light up to 30m | |
Motion detection 2.0 | Supoort, include Human & Vehicle detection | |
Image Parameters Switch | Yes | |
Image Enhancement | BLC, HLC, 3D DNR | |
Wide Dynamic Range | 120dB WDR | |
Network Protocols | TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket, SNMP | |
API | Open Network Video Interface Version 19.12 | |
Basic Event | Motion detection (support human and vehicle detection), video tampering, exception detection | |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection) | |
Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) | |
Region of Interest (ROI) | 1 fixed region for main stream | |
General Function | IP Address Filter | |
General | Housing | Metal&Plastic, White color |
Operating Power | PoE (802.3af), 12 VDC ± 25%,Ø 5.5 mm coaxial power plug | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR | |
DC12V output | DC12 V, 100 mA output | |
Audio input/output | 1 input (line in),1 output (line out) | |
Alarm nput/output | 1 input, 1 output (max. 24 VDC, 1 A) | |
Hardware Reset | Yes | |
Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP66 | |
Dimension (L x W x H) | 138.1 × 101.1 × 120.4 mm | |
Weight | Approx. 600 g (1.32 lb.) |
