Product Description:

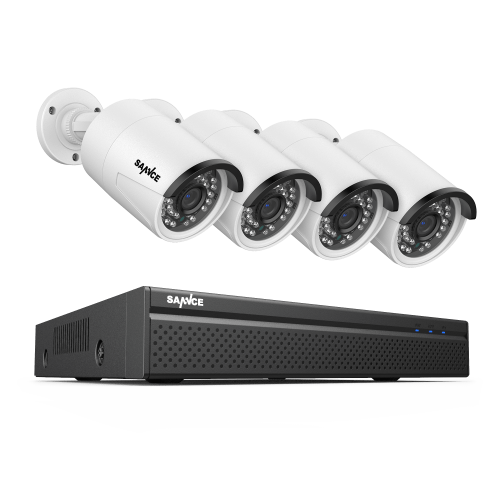

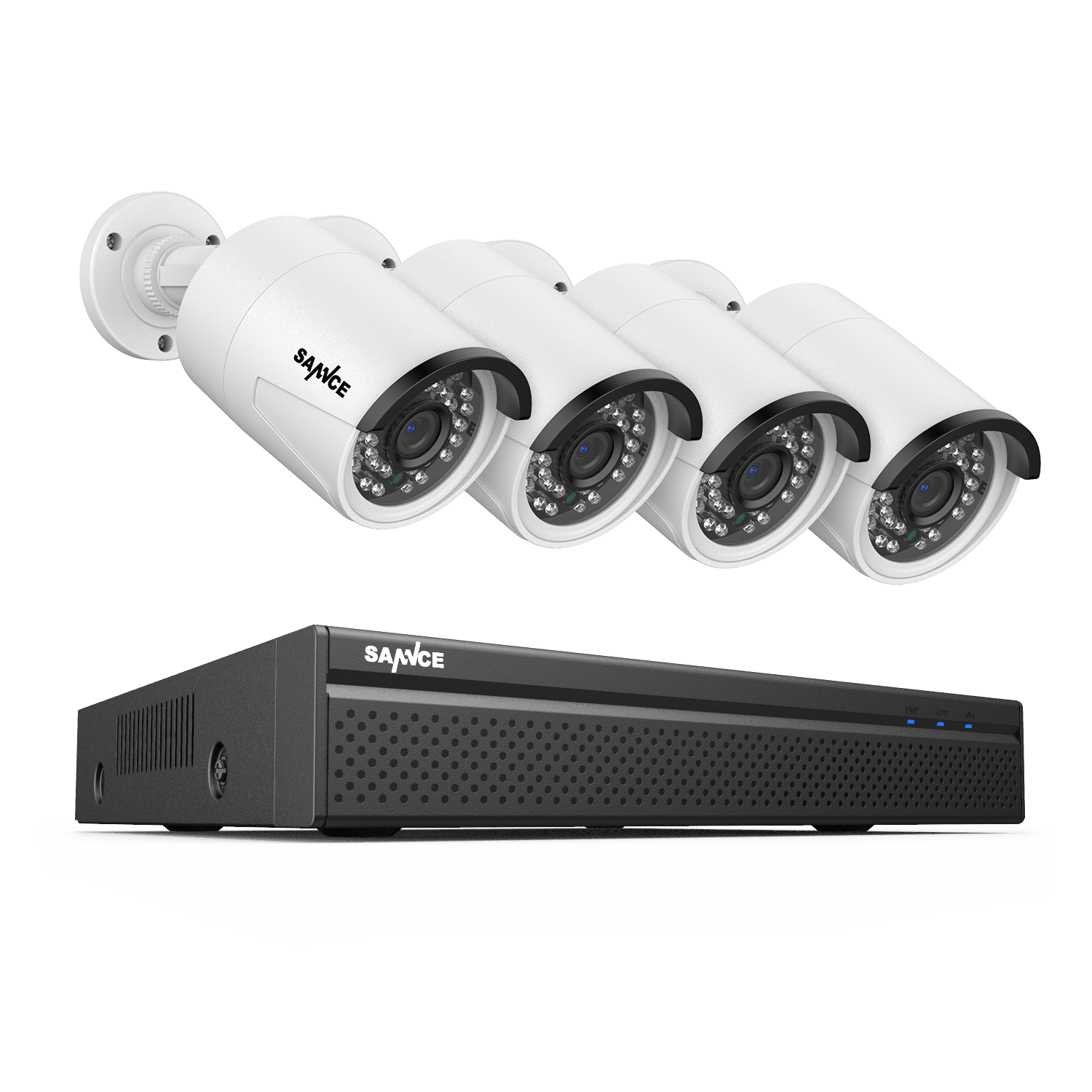

Are you looking for a high-quality and reliable security camera system to monitor your home or shop? SANNCE 8MP PoE network security camera system offers a perfect solution for both home and business surveillance. With its Power over Ethernet technology, crystal clear image, H.265+ video compression and other amazing features, this security system can be one of your most worthy investments for your families.
8MP Key Features:
★ 8MP high definition live viewing & recording
★ 8MP high definition playback channel
★ Support human detection
★ Vehicle shape detection, face capture(requires IPC support)
★ Up to 10 channels,8 built-in PoE inputs
★ Advanced H.265+ Video Compression
★ Two-way voice intercom, built-in microphone and speaker
★ Includes 4PCS 8 Megapixel Resolution POE outdoor IPC
★ Support DC12V and PoE dual power supply
★ Up to 100ft night vision with SmartIR
★ IP66 Dust and Waterproof Rating
★ Support onvif protocol
· 5MP high definition live viewing & recording
· 5MP high definition playback channel
· Support human detection
· 8 built-in PoE inputs
· Advanced H.265+ Video Compression
· Build-in microphone to capture voice signal
· Includes 4PCS 5 Megapixel Resolution POE outdoor IPC
· Heavy-duty durable metal housing
· Support DC12V and PoE dual power supply
· Up to 100ft night vision with SmartIR
· IP66 Dust and Waterproof Rating
Specifications:
PoE NVR:
Video Input: 8CH POE+2CH
Video Output: HDMI Up to 4K
Audio Output: Support
Video Compression: H.264+ Coding Format
Max Recording Resolution: Up to 8M(3860x2160)
Max Playback Resolution: Up to 8M(3860x2160)
HDD/HDD Capacity: Up to 12TB capacity
8MP IP Camera:
Image Sensor: 1/2.7" Progressive Scan CMOS
Video Resolution: 8MP(3840×2160)
Video Compression: H.265+
Angel of View: 105°
Number of Infra-Red LEDs: 36 pcs
Night Vision Distance: Up to 100ft/30m
Wide Dynamic Range: Digital WDR
Operating Power: DC12V; PoE (802.3af)
Operating Temperature: -20°C – 60 °C (-4°F – 140 °F)
5MP IP Camera: |
Camera | Video Resolution | 5MP(2880x1616) |
Image sensor | 1/2.8" Progressive Scan CMOS |
Video compression | H.265+ |
Audio Compression | G.711A |
Lens | 3.6mm |
Angle of View | 70° |
Number of Infra-Red LEDs | 36 |
Night Vision Distance | Up to 100ft/30m |
Wide Dynamic Range | Digital WDR |
IR Cut Filter | YES |
Ethernet | RJ45x1(10M/100M) |
General | Housing | Metal |
Operating Power | DC12V;PoE (802.3af) |
Operating Temperature | -4 °F – 140 °F /-20 °C – 60 °C |
Indoor/Outdoor | Indoor/Outdoor |
Weatherproof Rating | IP66 |
Dimension (L x W x H) | 6.7' x 2.6' x 2.6' / 170 x 65 x 65mm |
Weight | 0.772lbs / 350g |
What's in the Box?
* 1 x 8CH PoE NVR
* 4/8 x 5MP/8MP PoE IP Camera for your option
* 2/4 x 30m/100ft Ethernet Cable
* 2/4 x 18m/60ft Ethernet Cable
* 1× Power Adapter for NVR (DC48V)
* 1 x USB Mouse & Software CD
* 1 x User Manual for PoE NVR
* 4 x Mounting Screws Kit
Note:
We offer 5MP/8MP option,if you purchase 5MP nvr kit you will get the 5mp camera,please notice it,if you have any problems with the item please contact us directly.
![]()
![]()
NVR |
Video & Audio | Video Compression | H.265+ |
IP Video Input | 8CH POE+2CH |
Video Output | HDMI Up to 4K |
Audio Output | Support |
Max Recording Resolution | Up to 8M(3860x2160) |
Max Playback Resolution | Up to 8M(3860x2160) |
Max Playback Channel | 4CH |
Max Playback Capacity | 4CH 3MP/2CH 5MP/1CH 8MP |
Onvif | Support |
Hard Drive | HDD | 1 SATA interface |
HDD Capacity | Up to 12TB capacity |
External Interface
| Network interface | RJ45x1(10/100/1000M) |
POE | 8 Ports(IEEE802.3at/af) |
USB | USB2.0x2 |
General | Housing | Metal for main part |
Operating Power | DC48V |
Power Consumption | 10W(without HDD) |
POE: Max 30W for single port |
Working Temperature | 32 °F – 131 °F /0 °C – 55 °C |
Dimensions(W x H x D) | 260x245x47mm |
Weight (without hard disk) | 820g(without HDD) |
8MP IP Camera |
Camera | Video Resolution | 8MP(3840×2160) |
Image sensor | 1/2.7" Progressive Scan CMOS |
Video compression | H.265+ |
Audio Compression | G.711A |
Lens | 2.8mm |
Angle of View | 105° |
Number of Infra-Red LEDs | 36 |
Night Vision Distance | Up to 100ft/30m |
Wide Dynamic Range | Digital WDR |
IR Cut Filter | YES |
Ethernet | RJ45x1(10M/100M) |
Onvif | Support |
General | Housing | Metal |
Operating Power | DC12V;PoE (802.3af) |
Operating Temperature | -4 °F – 140 °F /-20 °C – 60 °C |
Indoor/Outdoor | Indoor/Outdoor |
Weatherproof Rating | IP66 |
Dimension (L x W x H) | 170 x 65 x 65mm |
Weight | 350g |
